Hytech- obf/1m-60 hydraulic set outboard up to 175hp including 6 meter hose

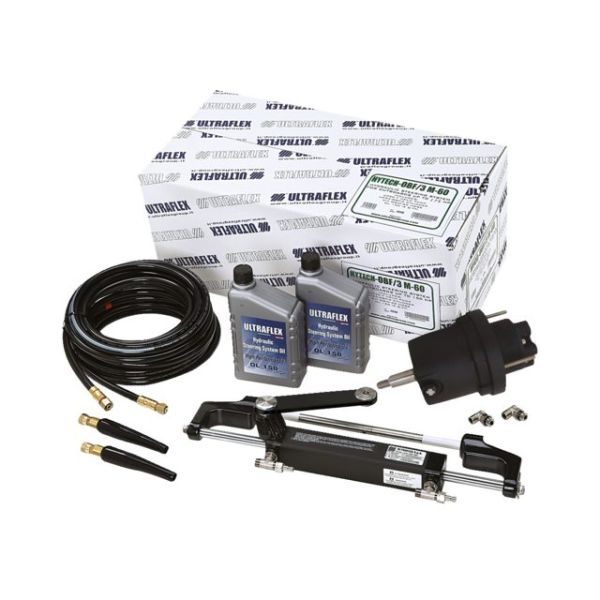

This set is suitable for most outboard motors up to 175HP on the market. The set contains a steering pump, a steering cylinder, hydraulic hoses and hydraulic oil. In short, all the elements to replace or install a new hydraulic or mechanical set. Including 6 meters of custom-made hose and reusable fittings. HYTECH™ outboard hydraulic steering system up to 175 HP consists of:



UP20F steering pump
UC95-OBF/1 steering cylinder
OL150 2 liter Hydraulic oil
KIT OB/M-60 (2 x 6 meters hose)
OB-F5/16 two reusable hose fittings
KIT 2M-5/16 bending limiters The UP20F steering pump is equipped with a built-in non-return valve, which prevents backlash from the engine in the hydraulic system. The pump is also equipped with a bypass valve that ensures that overpressure in the pump is prevented, so that no damage occurs.Technical information UP20F
Oil displacement 20cc
3/4" Stainless Steel Tapered Shaft for Steering Wheel Mounting
Maximum steering wheel diameter Ø 508mm
Maximum steering wheel diameter Ø with X52 406mmTechnical information UC95-OBF
Equal number of revolutions from center to starboard and port (balanced)
Volume 95cc
Working pressure 278kg
Stroke 186mm
Fittings 3/8"
Replaceable cylinder end piecesNOTE! Depending on the application, the UC95-OBF steering cylinder is available in two versions: UC95-OBF/1 and UC95-OBF/3 (available to order). This kit includes the UC95-OBF/1. For compatibility with your outboard motor, see the table on page ...
