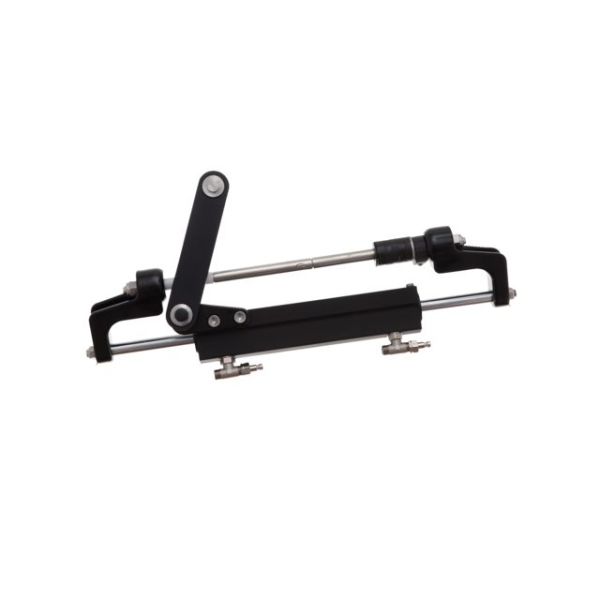

Hydraulic cylinder UC95-OBF/1

Cylinder for front mounting applications on outboard motors up to 175HP. Extra durable and strong housing. Patented split pin system for the steering shaft, making installation easy.Technical data:



Equal number of revolutions from center to starboard and port (balanced)
Volume 95cc
Working pressure 278kg
Inner diameter Ø 30mm
Stroke 186mm
Fittings 3/8"
Replaceable cylinder end pieces
Available in two versions see page … for compatibility
