HYCO-I/M-60 hydraulic set inboard up to 150hp including 6 meter hose

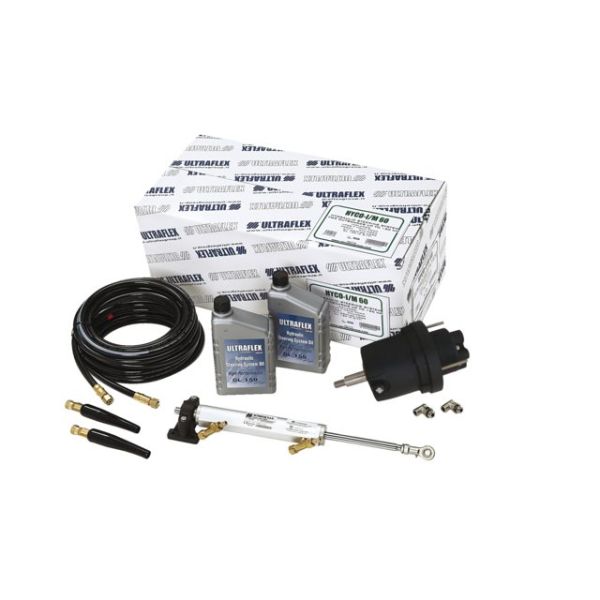

This kit is suitable for most inboard engines up to 150 HP on the market. The kit contains all the elements to replace or install a new hydraulic or mechanical set. Including 6 meters of custom-made hose and fittings. HYCO™ inboard hydraulic steering system up to 150 HP consists of:



UP20F
UC69-I
OL150 2 liter Hydraulic oil
KIT OM/M-60 (2 x 6 meters hose)
Number of wheel turns 3.5The UP20F steering pump is equipped with a built-in non-return valve, which prevents backlash from the engine in the hydraulic system. The pump is also equipped with a bypass valve that ensures that overpressure in the pump is prevented, so that no damage occurs.Technical information UP20F
Oil displacement 20cc
5 plungers
Maximum steering wheel diameter Ø 508mm
Maximum steering wheel diameter Ø with X52 406mmTechnical information UC69-I
Equal number of revolutions from center to starboard and port (balanced)
Volume 69cc
Working pressure 168kg
Inner diameter Ø 25mm
Stroke 150mm
Fittings 3/8"
