Gotech hydraulic set outboard up to 115hp

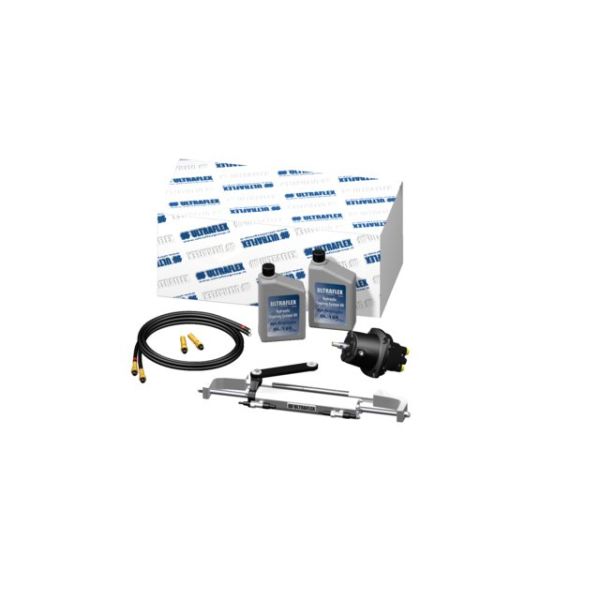

GOTECH™ hydraulic control system to 115 HP consists of:



UP18 intermediate mount helmet pump
UC81-OBF front mount cylinder
OL150 2l hydraulic oil
Kit OB-GT / M hose kit diameter Ø 1/4", 2 x 6m (19.7') long
Number of wheelturns 4.5 The steering pump UP18 is equipped with a shut-off valve, preventing setbacks from the motor to the steering wheel. In addition, a built-in bypass valve prevents damage from overpressure. The steering pump UP18 can be used with the cylinder UC81-OBF. Technical information UP18
Capacity per stroke 18cc
5 Plumper
Maximum wheel diameter Ø 508mm
55bar/800PSI Technical information UP81-OBF
Same number of strokes from middle to the starboard and port (balanced)
Volume 81cc
Output force 222kg
Inner diameter Ø 27.4mm
Stroke 186mm
Hose connection 3/8"
