T85 steering head black

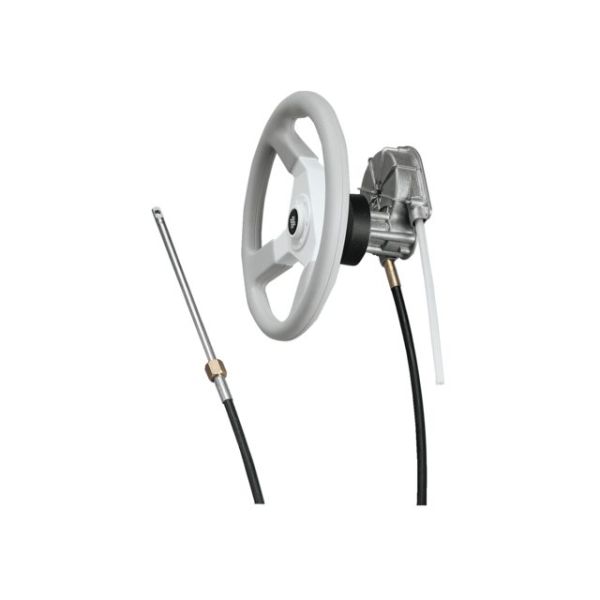

A complete operating system should consist of:



Steering T85
Steering cable M66 - available in lengths of 30.5 cm (1 foot) (can be ordered separately depending on the required length)
Steering wheel (can be ordered separately if desired)
Connection pieces for the engine (can be ordered separately depending on the engine type) Features and technical specifications:
All cable ends made of stainless steel according to ABYC safety requirements
Corrosion resistant materials
Can also be used where space is limited
Approximately 3 turns of the steering wheel from port to starboard
Stroke 228mm
Maximum diameter of the steering wheel Ø 406mm
Minimum bending radius of the control cables 200mm
Minimal recoil
Compact installation dimensions
According to the safety requirements of the ABYC and standard 94/25 CE/EN 28848T85 steering system may not be used on boats equipped with engines that exceed the maximum kW/hp prescribed for that type of boat. See selection table page
