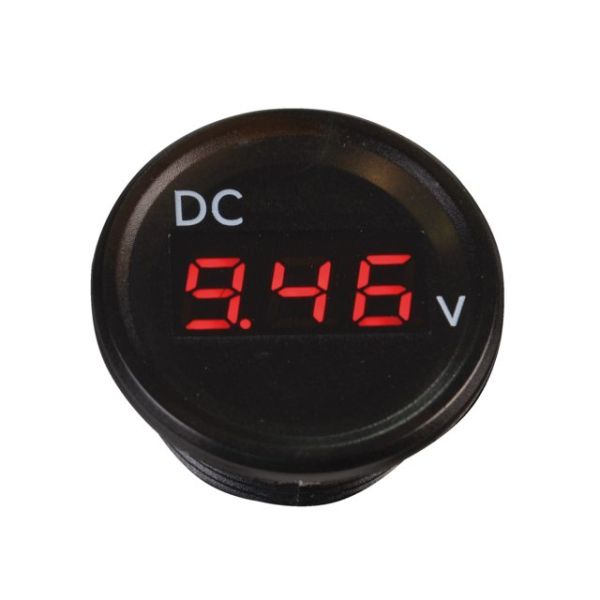

Voltmeter black 2.5-30V with flush frame (terminals)

Compact digital voltmeter that indicates the DC voltage on board. The housing is completely sealed, making it IP67 waterproof and suitable for outdoor mounting. Voltmeter is supplied including a flush mount frame. This voltmeter can also be used in the double flush mount frame models. The decimal point is variable, which means that it jumps 1 digit at voltages lower than 10V for exact indication. Protected against reverse polarity.



Voltage 2.5-30V DC
Consumption <30mA
Refresh rate 5 per second
Voltage resolution 0.01V (input <10V) /10.0V (input >10V)
Diameter Ø 36.60mm, total height 17.5mm (without flush mount frame)
