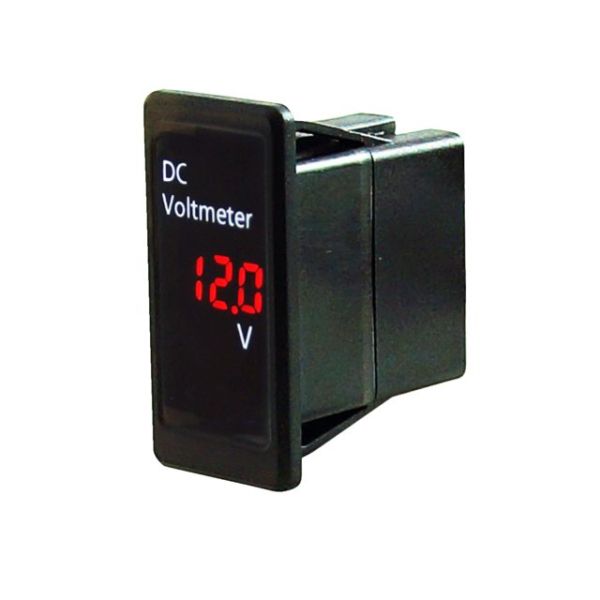

Voltmeter 2.5-30V switch model

Compact digital voltmeter that indicates the DC voltage on board. The housing is completely sealed, giving it an IP67 water resistance and making it suitable for outdoor mounting. The voltmeter has the size of commonly used switches, making it easy to fit into an existing configuration. The decimal point is variable, making it jump 1 digit at voltages lower than 10V for exact indication. Protected against reverse polarity.



Voltage 2.5-30V DC
Consumption <30mA
Refresh rate 5 per second
Voltage resolution 0.01V (input <10V) / 10.0V (input >10V)
Overall 48 x 24.2mm
Cut-out 36.83 x 21.08mm
Installation depth 44.71mm
1 1/8" switch mount size
