Volt & ammeter 4.5-30V & 0-15A

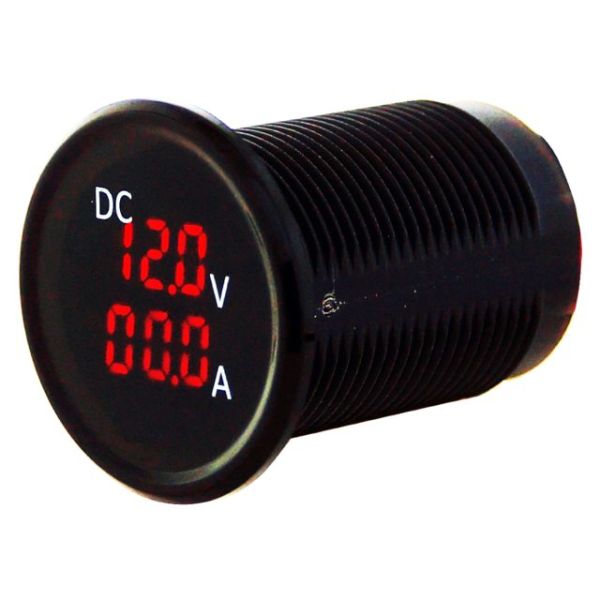

Compact digital voltmeter and ammeter which indicates the DC voltage and ampere consumption of an on-board battery. The housing is completely sealed, giving it an IP67 waterproof rating and making it suitable for outdoor mounting. Supplied with a flush mount frame. This voltmeter & ammeter can also be used in the double flush mount frame models. The decimal point is variable, which means that it jumps 1 digit at voltages lower than 10V for exact indication. Protected against reverse polarity.



Voltage 4.5-30V DC
Ampere 0-15A DC
Consumption <30mA
Refresh rate 5 per second
Voltage resolution 0.01V (input <10V) / 10.0V (input >10V)
Diameter Ø 36.60mm, total height 17.5mm (without flush mount frame)
