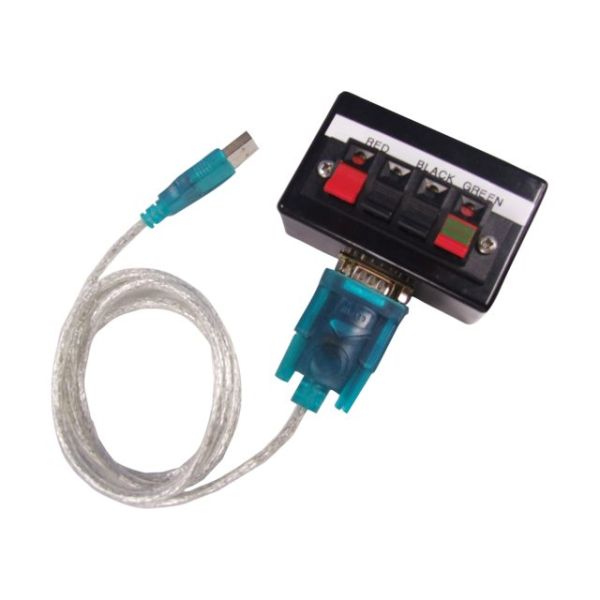

Ultrasonic tank transmitter programming tool

The BEP ultrasonic tank sensor measures the level in a fuel, water or waste water tank using ultrasonic waves. No moving parts, so no chance of malfunctions. The tank sensor can convert this ultrasonic signal to a 240-33 Ohm, 10-180 Ohm, Vetus 10-300 (analog) and 0-5V Volt signal, so that it can be read with regular analog instruments. The tank sensor has a standard SAE 5 mounting flange and can therefore be exchanged with existing tank sensors. Suitable for tanks made of plastic and metal. Sensor must be installed on the top of the tank.



Compact design 95mm x 19mm
SAE 5 mounting flange
Suitable for depths up to 2000mm
Voltage 10 - 32
Current consumption 25mA with 5V instrument output
2mm accuracy
Suitable ambient temperature between minimum 4°C and maximum 65°C
Resistant to: petrol, diesel, water and toilet chemicals
