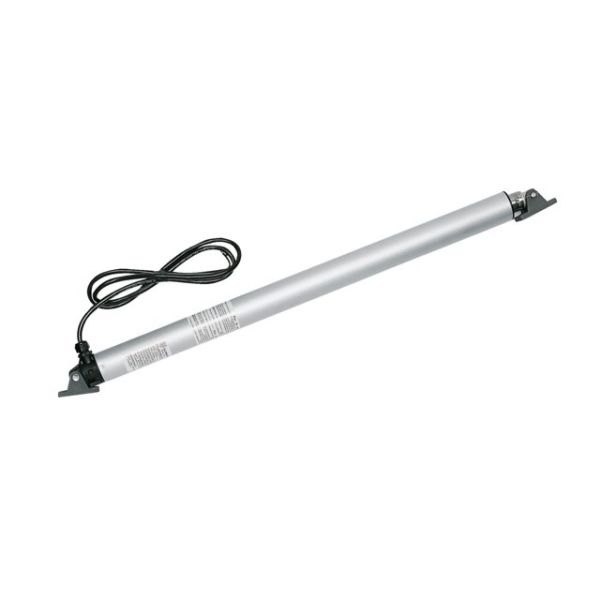

AV 6024 Hatch lift - stroke 600 mm (24") - 24V

The AV hatch lift is a strong electromechanical hatch lift that can be installed both single and double on board yachts. Due to the high workload, the AV series is able to easily open the heavier hatches, engine hatches, etc. and leave them in the desired position.



Single or double installation
Maximum load:- single 1200N (120kg-265lbs)- double 2400N (240kg-529lbs)
Maximum opening angle 125°
Diameter Ø 48mm
Supplied with mounting feet
Supplied with circuit breaker against overload
Electronic stop at full opening and closed position
Equipped with manual emergency control
Stainless steel ram arm
IP65
Speed:- 25mm/sec unloaded- 17mm fully loaded
Consumption:- 12V 10A- 24V 5A
Relay and switch can be ordered separately
12V models are spark-free (ignition protected) according to ISO8846, UL1500
